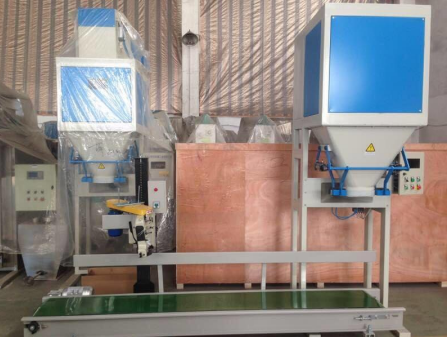

Semi-automatic Gravity Type Packing MachineMain Structures:

■ Reference Dimension：3000×750×3200mm, subject to the real machineReference Dimension：3000×750×3200mm, subject to the real machineAutomatic filling system

■ Automatic weighing balance

■ Automatic belt conveyor

■ Automatic sewing / sealing machine

■ Electric control and Computer Control cabinet

Flowing Process:

Manual Bag placing→Automatic filling→ Automatic weighing→ Auto bag unloading →Automatic bag conveyer →Automatic bag sewing/sealing →Next round

Technical Parameter:

■ Type：LCS-ZZ-Y

■ Weighting Range: 1-5, 5-10, 10-25, 25-50 Kg/bag, customized needs.

■ Precisions：±0.2%FS

■ Output Capacity： 280-330 bags/hour.

■ Power Source：220V/50Hz 1 phase, 380V 50Hz 3P, will made as per local electrical system

■ Power : 2.2/3 KW

■ Air resource：0.4～0.6 Mpa ( 170ml, or 0.17 m3 or 8kg air compressor )

■ Reference Weight: 300~400kg, subject to the real machine.

■ Bag Belt conveyor Dimension: 3000*400mm, subject to the real machine

■ Reference Dimension：3000×750×3200mm, subject to the real machine
