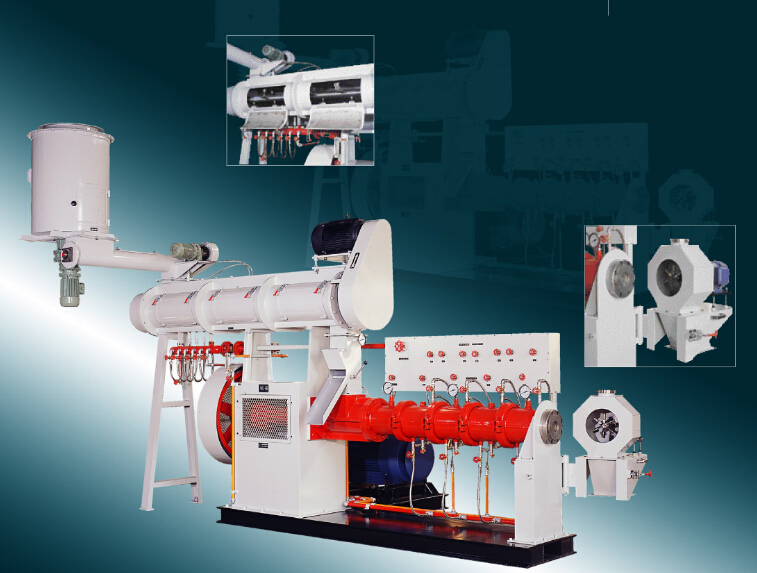

extruder
Suitable for extruding of submersible/float aquatic feed, pet feed,ornamental fish and ao on,Thepellet size is about Φ0.6-16MM. Flat-bottomed scraper mechanism and feeder controlled by transducer make sure that the maiterials canbe fed evenly and constantly. The DDC conditioner can make the materials have fully gelatinization of starch,which is brought aboutby a combination of hot steam and mechanical shear/mixing. The materials may remain in the conditionerfor a time over 180S All of the parts which are directly in centact with the materials are made of stainless stell. Screw sleeve adopts jacket construcion,which can be injected in with hot steam or cooling water,thus the extruding temperature can be controlled effectively,Also the steam and wateer can be directly injectedinto the extruding chamber through special mechanism. Removable cutting mechanism use knives with good elasticity,which attach to the die plate tenderly and can be regulated in six directions, can be operated quickly and simply.The transducer-controlled rate regulater can easily control the pellet size of the products. Main bearing box structure adopts special technical design,with SKF bearing inside. Variably configurations of screw bolts can match the producing denands for different formulas and raw materials. Screw bolts and dies are processed through vacuum quench treatment,also be processed with high processing precision and have a long using longevity. All the operating parts like steam valves ect,adopt the humanization design,in order to facilitate actual operations. Electic cabinet equipped. 主要技術(shù)參數(shù) Main Technical Date

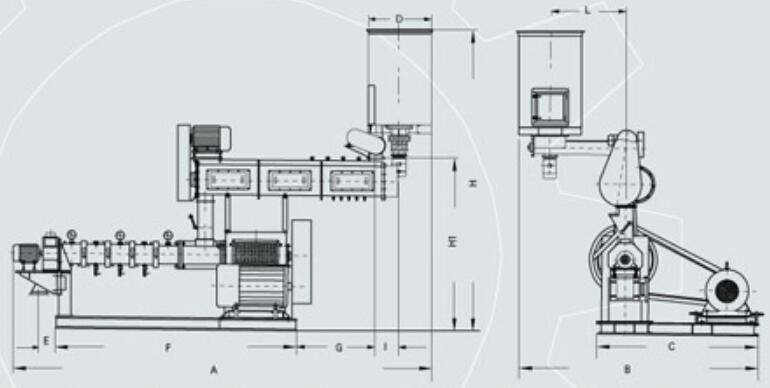

主要外形參數(shù) Main Dimensin
|
